SPECIFICATIONS

Specifications:

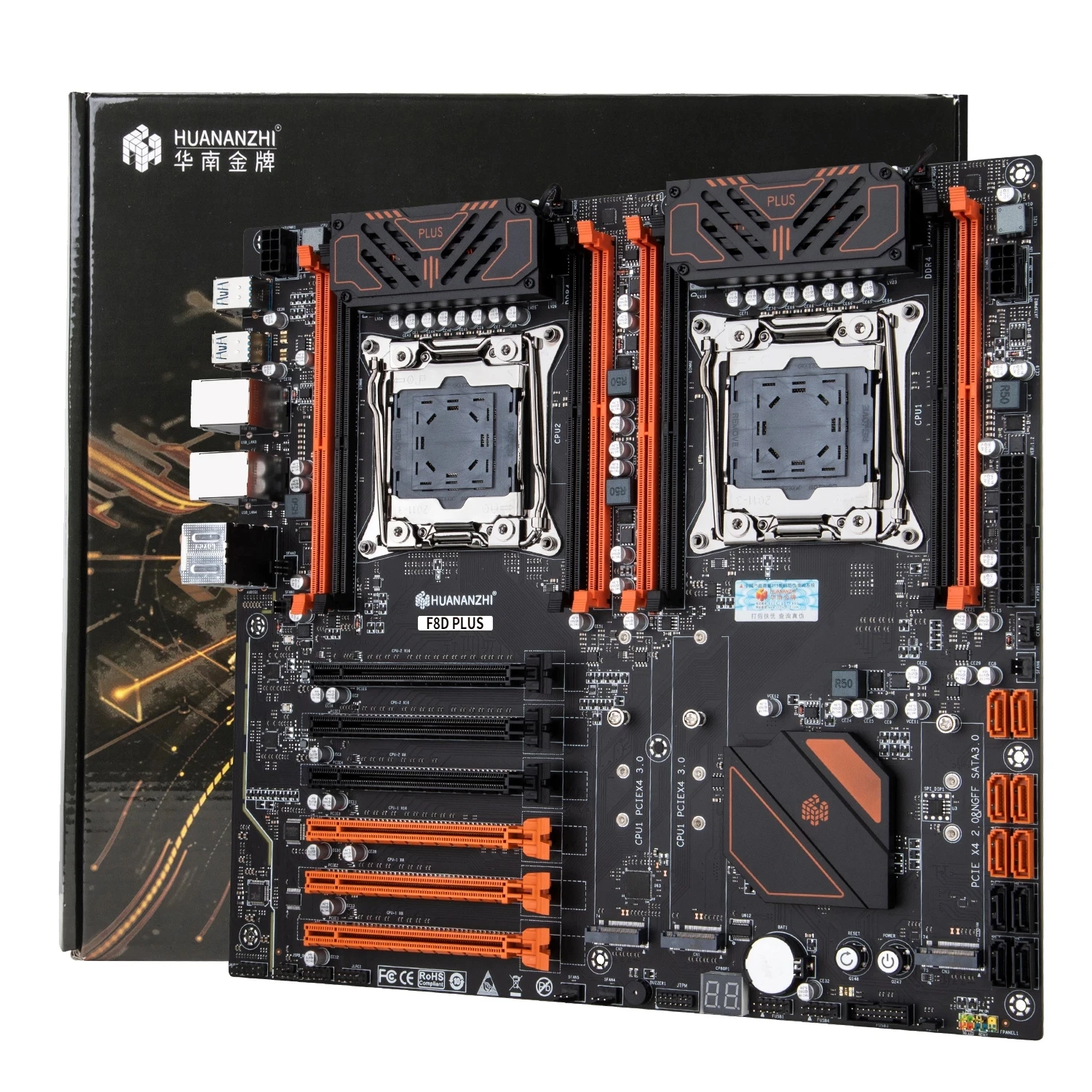

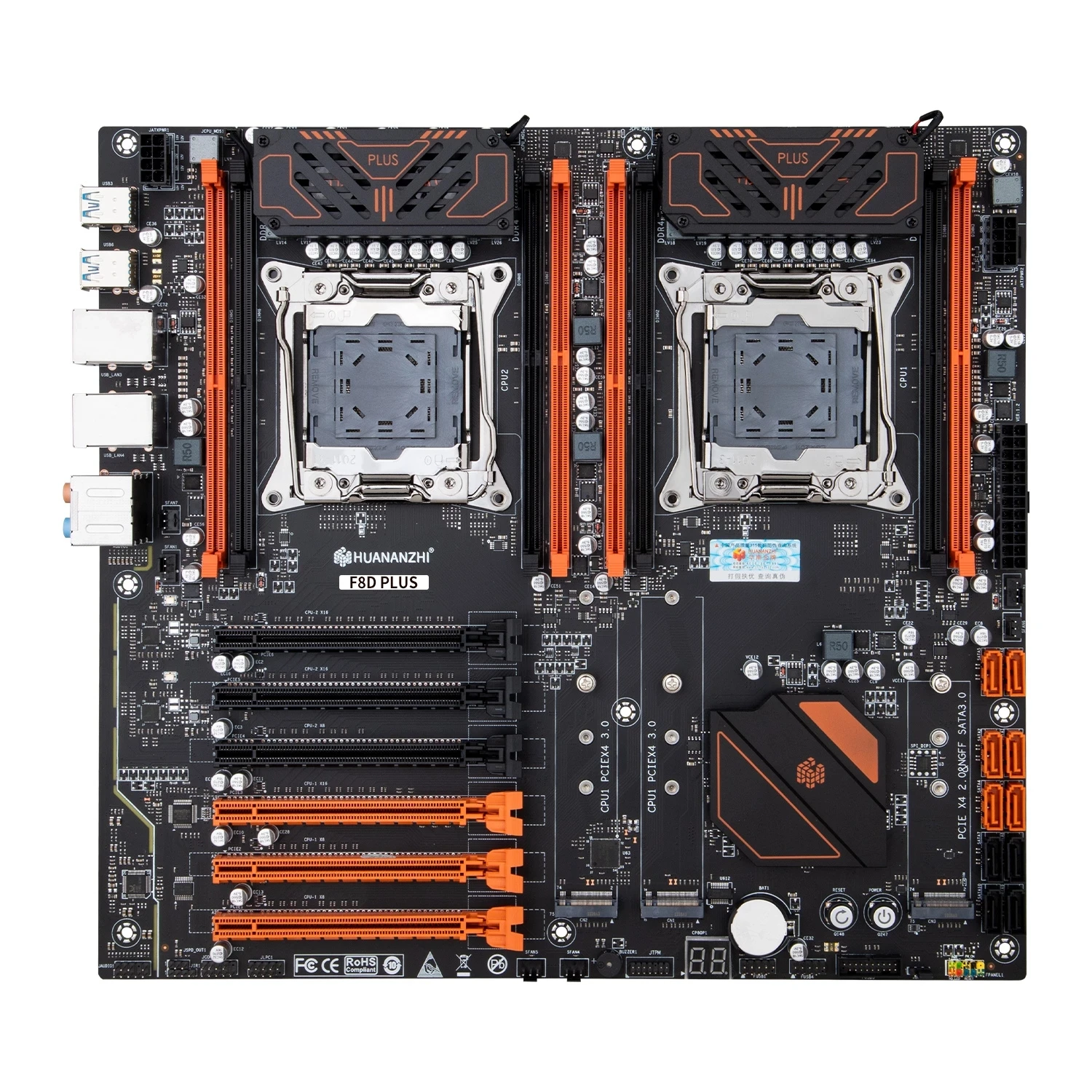

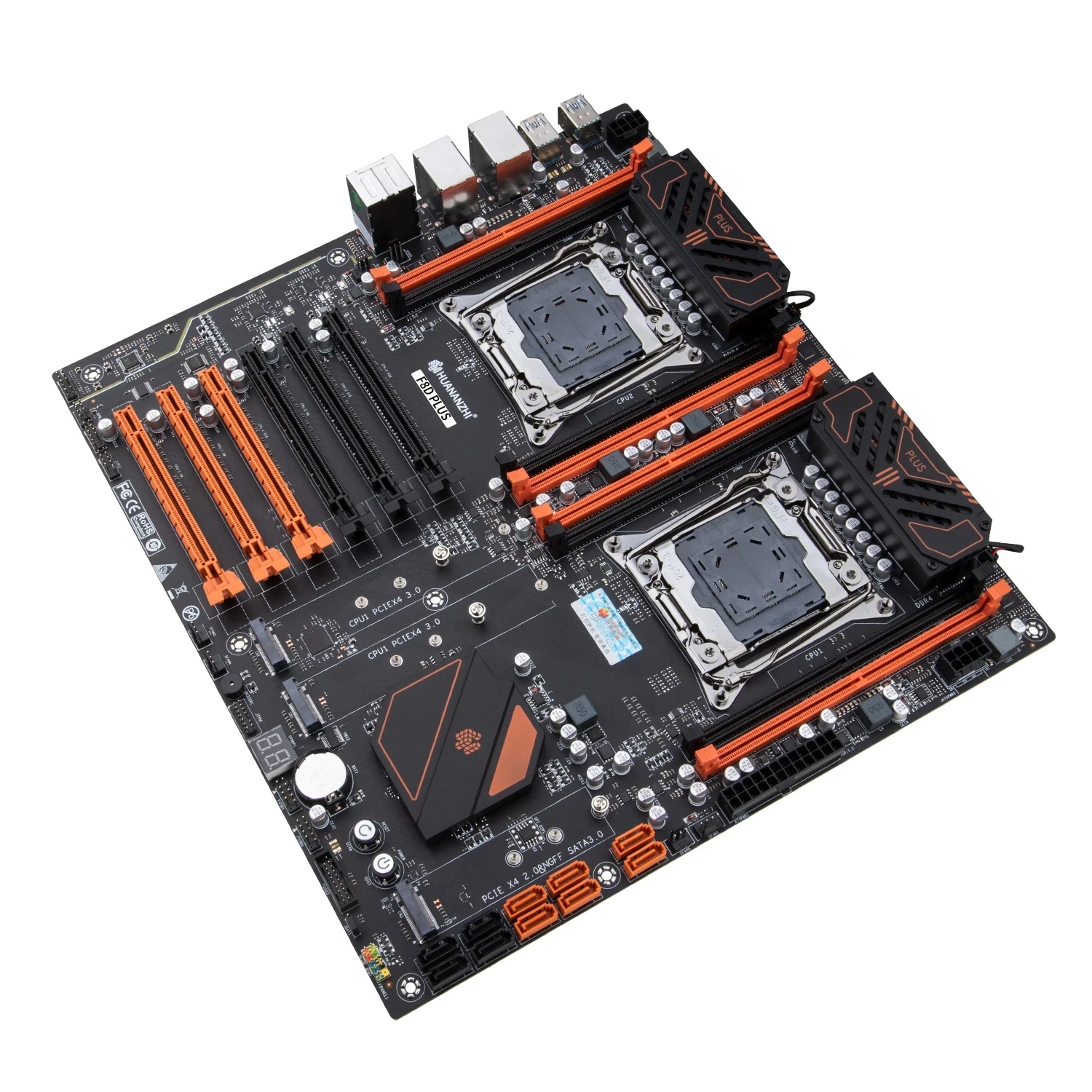

Model：HUANANZHI F8D PLUS Motherboard
CPU Socket：Support Intel® 2011-3 Processors
Main chipset: C612 … Etc chipset shipped randomly
Ｍemory Socket：8*DDR4 Memory，Maximum Memory Capacity 8*64G
Ｍemory Standard：Support Four channel DDR4 1866/2133/2400MHz
SATA Inderface：6 *SATA3.0 6Gb/s ；4 *SSATA3.0 6Gb/s

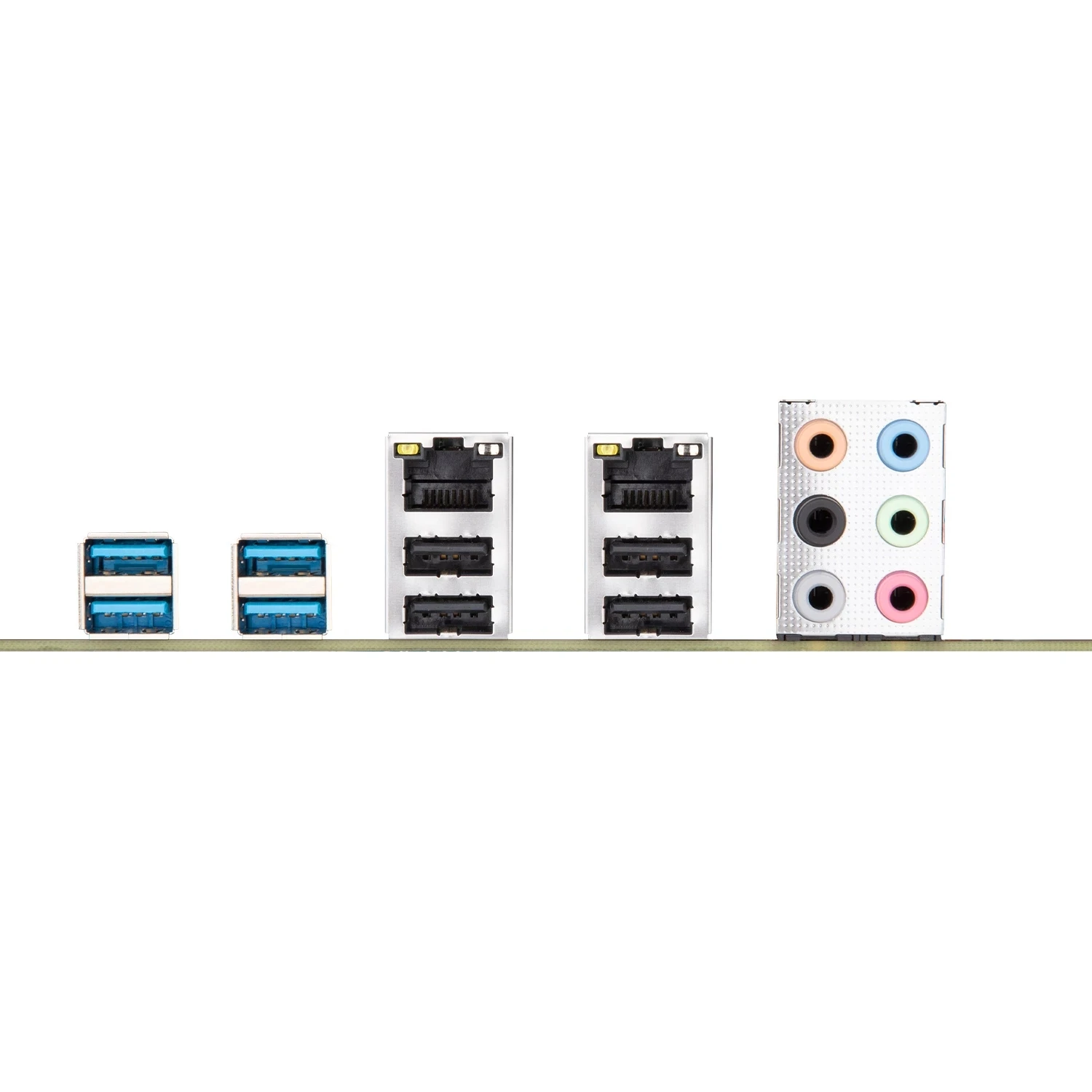

Extended Inderface：IO：4*USB2.0，4*USB3.0，2*Gigabit Ethernet Card，6*3.5MM Audio interface；Expansion pin：1*9pin USB2.0，1*19pin USB3.0，1*Front audio output pin
Expansion Slots：3*PCI Express3.0X16，1*M.2 22110 NVME PCIE x4 3.0 32Gb/s，1*M.2 2280 PCIE X4 3.0@NGFF SSATA 3.0 6GB/S (one ssata signal will be used NGFF)
Soud Track：7.1
Network interface：Gigabit Ethernet
Power interface：24pin+8pin+8pin
Fan interface：6
PCB layer：12 layer PCB，12Phases power supply
Dimension：300*320MM E-ATX

Note:

1.The platform needs powerful power. Please make sure your power supply is sufficient to support it(at least 500w power supply) .
2.Please allow 1-3mm differs due to manual measurement.
3.Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
4.The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.
5.We show photos of motherboard, pictures are for reference only, subject to our available products.
6.For Customs duties problem , pls make sure you can solve the customs clearance problems by yourself, if you can’t solve it, we don’t advise you to buy goods in our store. We are not responsible for customs duties. Thanks for your kindly understanding！
7.Due to computer accessories is toomuch,are likely to have some small brand,bad quality or ES/QS version of the CPU, RAM, M. 2 SSD or other accessories may occur incompatible situation with motherboard.You can confirm with our customer service before purchase. if there is no confirmation before purchase then incompatible happen when you receive the motherboard, we would not accept a refund, when you buy this link of single motherboard we default you have read and know the situation.Mind please don’t buy!

We promise to test and process your order within 24 hours
