Brand Name: MACHINIST
Chipset: Intel H97
Onboard LAN: 1x RJ45
Onboard LAN: WIFI (AC)
Maximum Ram Capacity: 16 GB
Processor compatibility: Intel Xeon Scalable
Processor compatibility: Intel Core
With CPU: No
Support Memory Type: DDR3
Number of PCI: 0
Storage Interface Type: SATA
Storage Interface Type: M.2 (NVMe)
Package: Yes
RAID Supported: No
Application: Desktop
Chipset Manufacturer: Intel
Back I/O Ports: 1x RJ45
Back I/O Ports: VGA(D-Sub)
Back I/O Ports: COM
Back I/O Ports: HDMI 1.0
Back I/O Ports: PS/2
PCI – E standards: PCI – E 3.0
Socket Type: LGA 1150
Special Function: NONE
Usage Scenario: Gaming
Usage Scenario: Audio & Video
Usage Scenario: Office
Usage Scenario: MINI PC
Usage Scenario: Others
Origin: Mainland China
Number of PCIe x 8: 0
Number Of Memory Slots: 2
Ports: M.2
Form Factor: CeB
Support USB Type: USB 2.0
Support USB Type: USB 3.0
Number of PCIe x 16: 1
Onboard Connectors & Header: 24-pin Main Power Connector
Onboard Connectors & Header: CPU Fan Connector(s)
Onboard Connectors & Header: AAFP Connector
Memory channel: Double
Number of SATA Ports: 4
Audio Channels: 7.1
SATA RAID: 0
Quality Certification: ce
Quality Certification: ROHS
Number of PCIe x 1: 0
Certification: RoHS
Certification: CE
Form Factor: Mini-ATX
Supports M.2 SSD: 2280
Number of M.2: 2

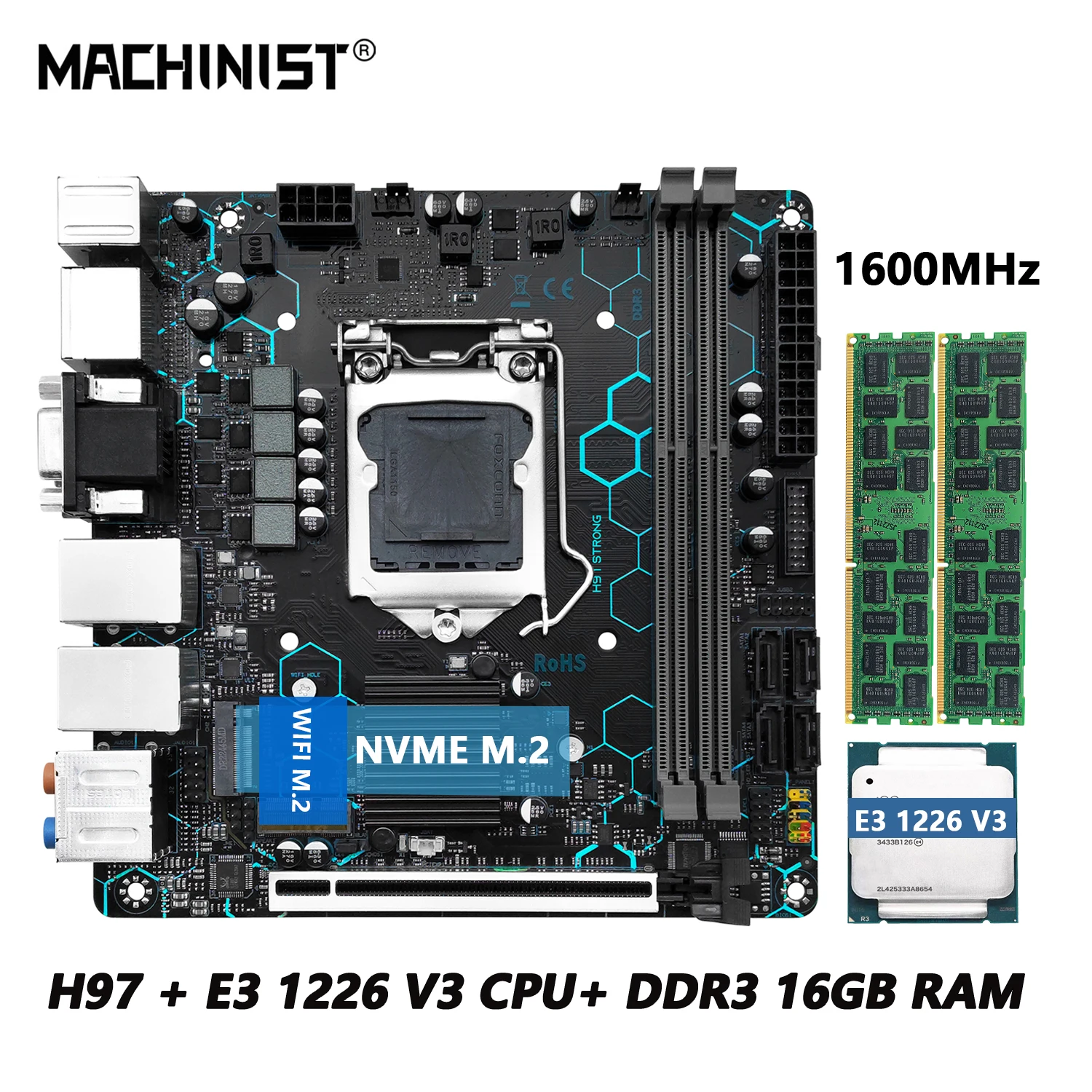

To purchase the kit, click on the image link to view it.
Specifications:
It supports 4 SATA ports and 10 USB ports.
Support high-speed DDR3 dual-channel memory slots.
Supports 7.1 channel ALC897 chip.
Support M.2 interface and WIFI Bluetooth module.
Supports the transmission speed of high-speed USB3.0 interfaces.
Support RJ45 Gigabit NIC port *2.
Support 6 layers of PCB baseboard, 4 phase power supply.
Support Win7, Win10 32/64 bit operating system.

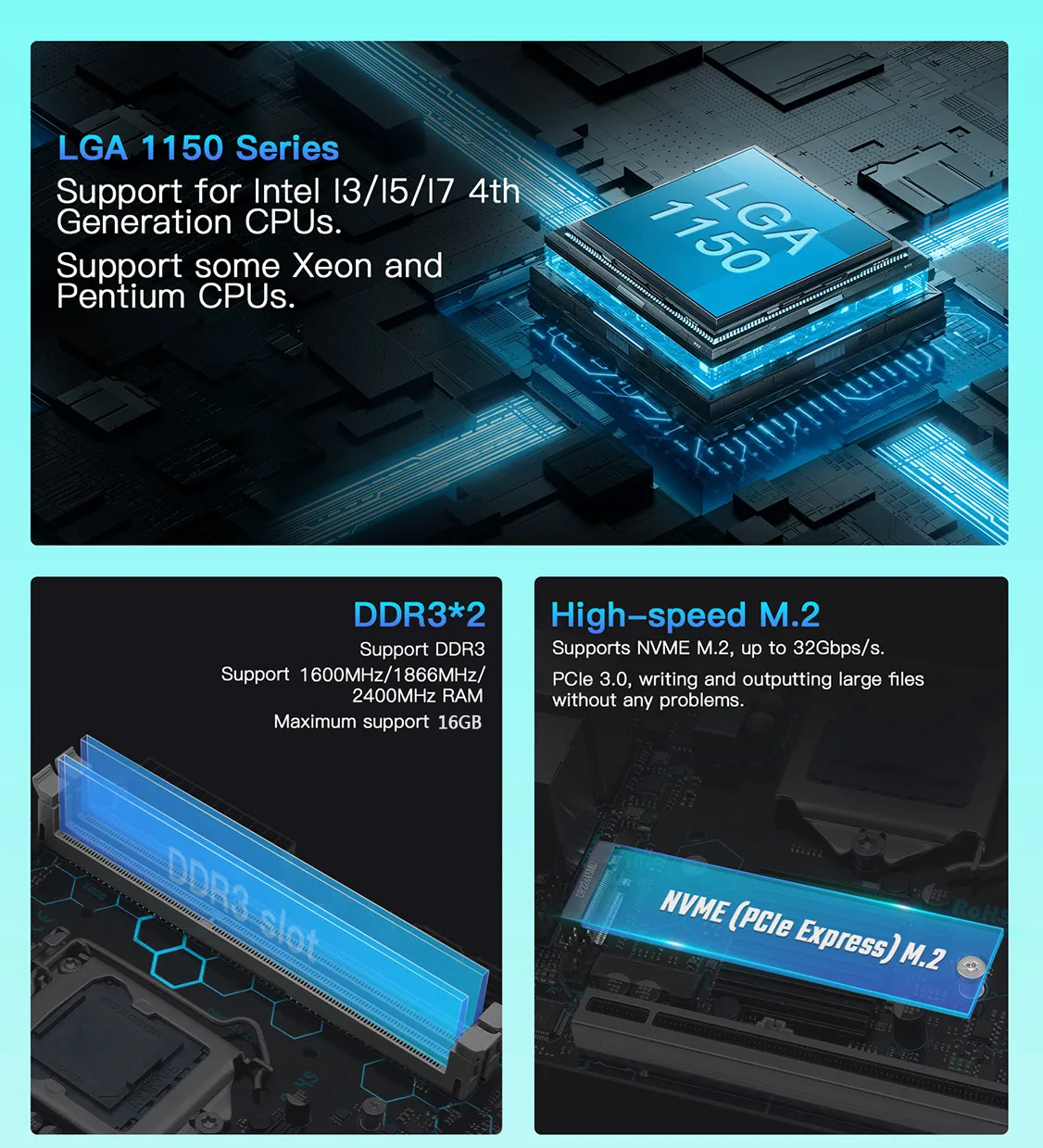

>> processor
Intel i7, i5, i3, E3 LGA1150 pin series processors.
>> South Bridge
H97 Chipset series.
>> Memory
Technology: Dual-channel DDR3 frequency: 1066/1333/1600/1866MHZ.
Maximum capacity: 16GB.
Memory slot: 2 x 240 PIN DDR3.

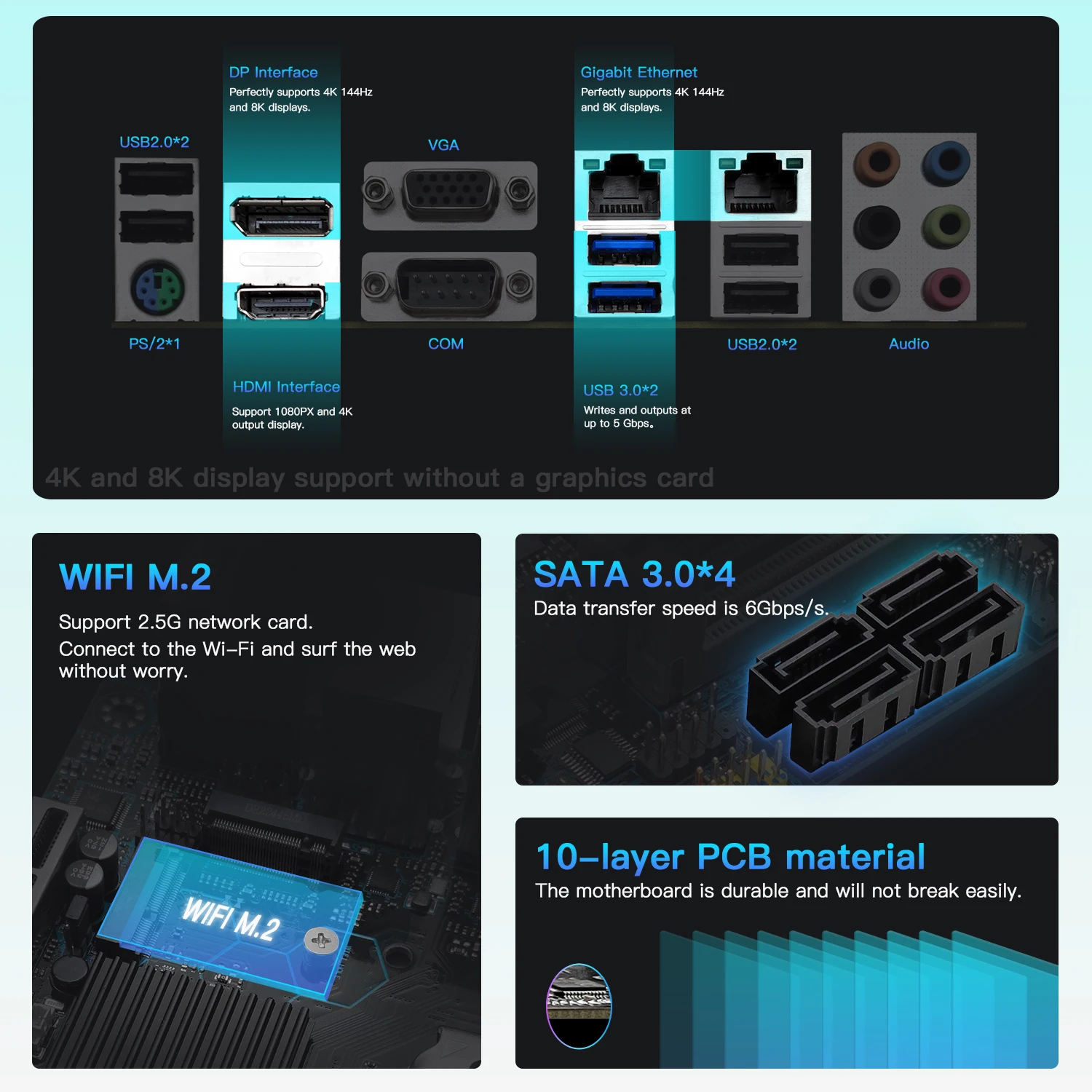

>> Post I/O
USBPS2 connection: 1 (PS/2 mouse, PS/2 keyboard), 2 USB2.0.
Display interface: 1 VGA; 1 HDMI; 1 DP; 1 COM.
USB_LAN: Two Realtek Gigabit nics, two USB2.0, and two USB3.0.
Audio: 1 PCS (Mic-in, Line-out, Line-in, SIDE, REAR, C/SUB).
>> Internal connector
USB 2.0:2 PCS (one JUSB can be transferred to two USB 2.0 ports).
USB 3.0: Two (one FUSB can be converted to two USB 3.0 ports).
SATA ports: Four SATA3.0 ports.
Audio: 1 2x5Pin insert pin.
M. 2:1 M.2 ports (PCIE protocol).
WIFI: A WIFI Bluetooth module slot.
>> Physical dimensions :170mm x 170mm.
Note:
>>For the tariff problem, please make sure you can solve the customs clearance problem by yourself, if you can’t solve it, we do not recommend you to buy goods in our store. We are not responsible for customs duties. Thanks for your understanding.
(1) The color of the bottom plate of the slot may vary from batch to batch, but it will not affect the use of the product. The product is constantly optimized and upgraded.
(2) Please allow 1-3mm differs due to manual measurement.
(3) Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
(4) This planform needs powerful power supply. please make sure your power supply can enough to supports this planform.(at least 500w brand power supply)
(5) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.
