Description

SPECIFICATIONS

Brand Name: HUANANZHI

Chipset: Intel B660

Onboard LAN: 1x RJ45

Maximum Ram Capacity: 64 GB

Processor compatibility: 12th Intel Core i5

Processor compatibility: 13th Intel Core i5

Processor compatibility: 12th Intel Core i3

Processor compatibility: 13th Intel Core i3

With CPU: No

Support Memory Type: DDR4

Number of PCI: 0

Storage Interface Type: SATA

Storage Interface Type: M.2 (NVMe)

Package: Yes

RAID Supported: No

Application: Desktop

Chipset Manufacturer: Intel

Back I/O Ports: 1x RJ45

PCI – E standards: PCI – E 4.0

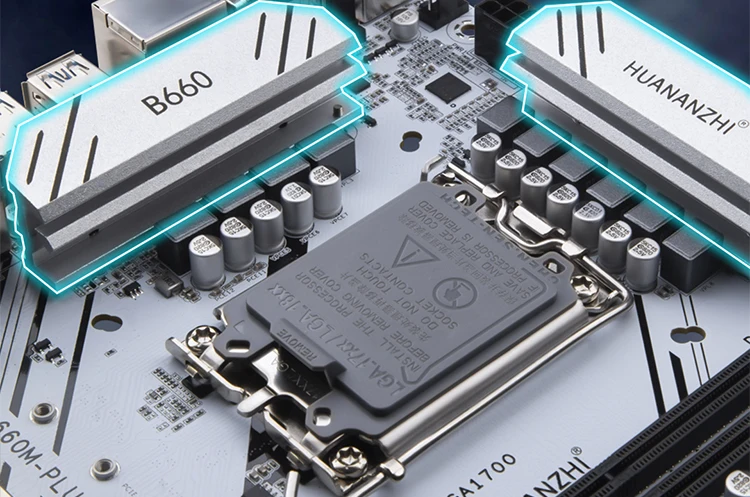

Socket Type: LGA 1700

Special Function: NONE

Usage Scenario: Gaming

Usage Scenario: Audio & Video

Usage Scenario: Office

Origin: Mainland China

Number Of Memory Slots: 2

If you have other requirements for the processor model and memory capacity, you can contact our staff to change the setting and recount the price

Specifications:

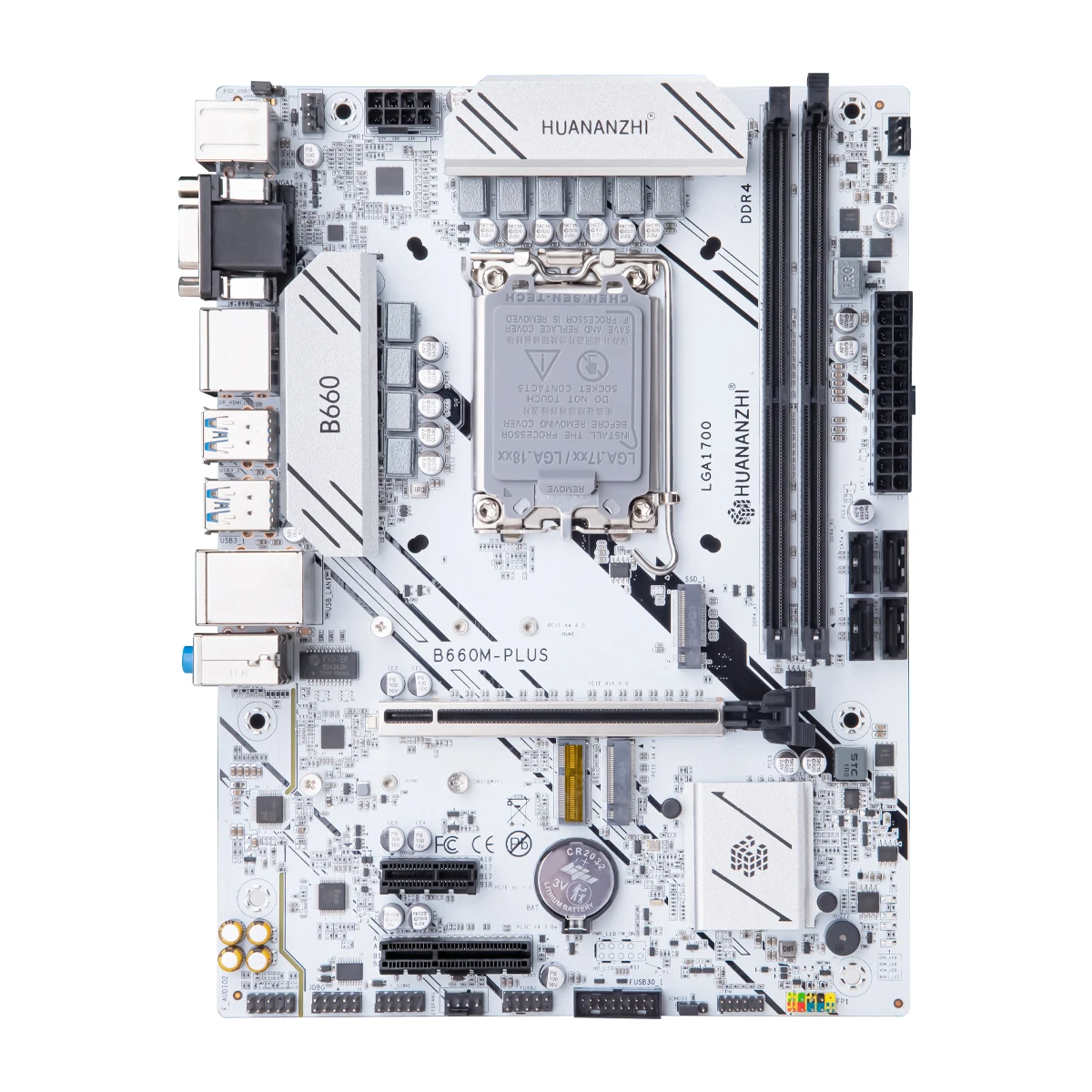

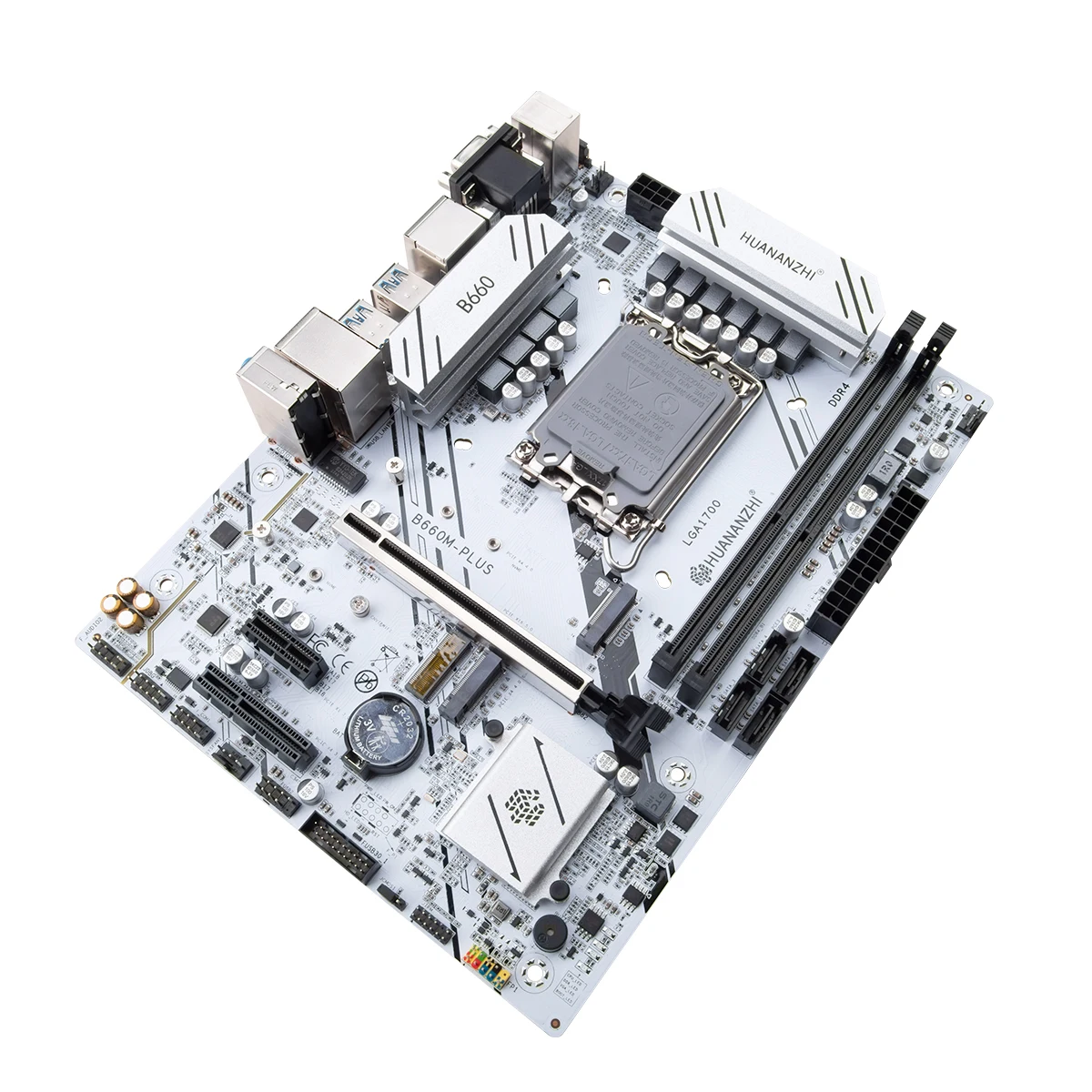

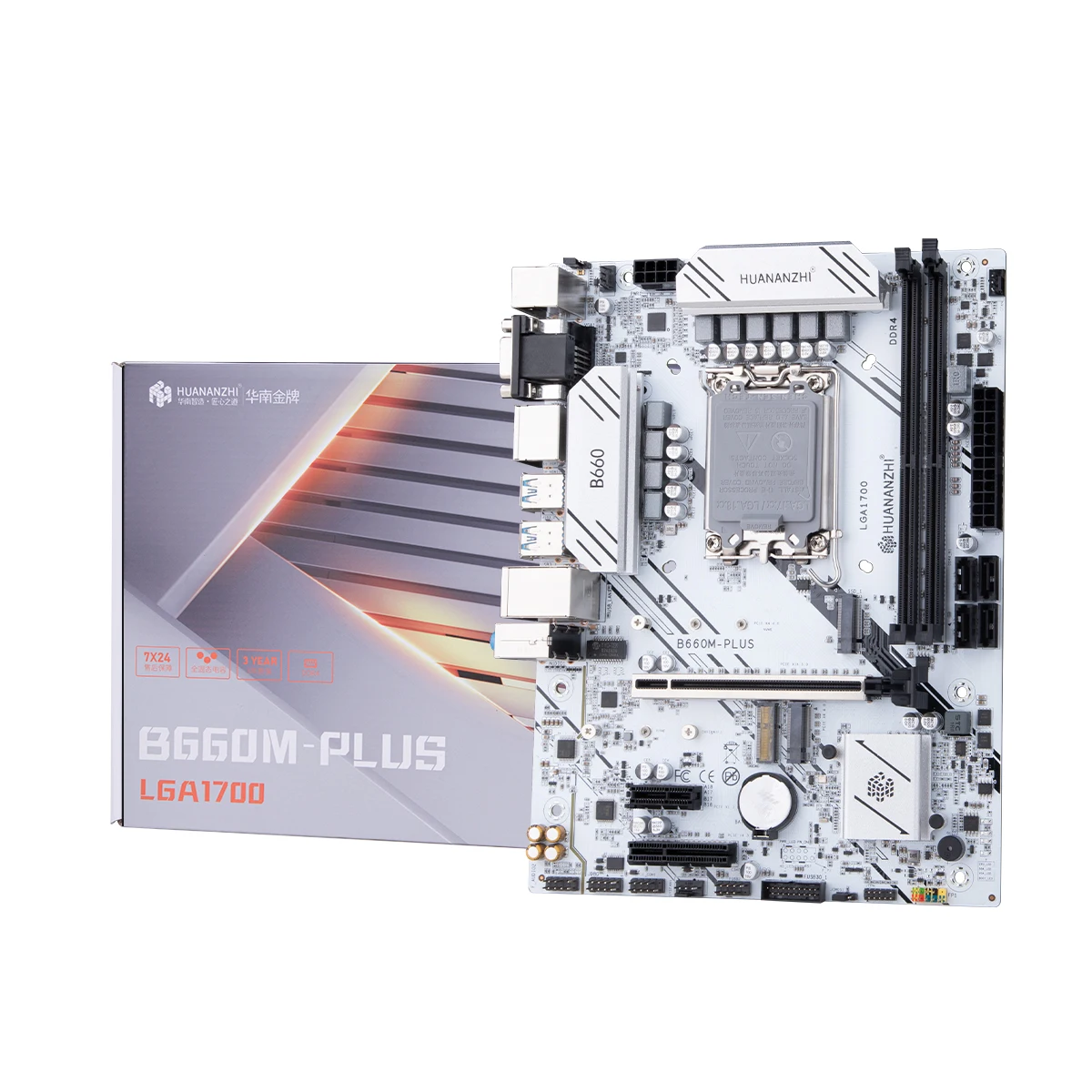

Model：HUANANZHI B660M-PLUS Motherboard
Main chipset：Intel B660
CPU Socket：Support Intel LGA1700 platform processor
Memory slot：2 x DDR4 memory slot

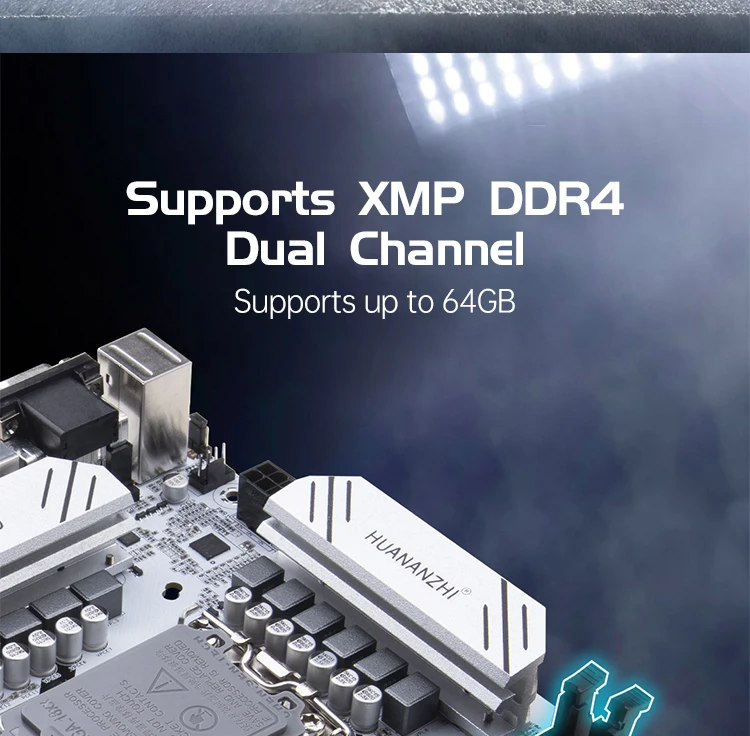

Memory standard：Support dual channels DDR4 3600/3200/2933/2666/2400/2133MHz Memory(Depends on CPU/supports XMP)，Max support 64 GB
Storage interface：4 x SATA 3.0 6Gbps（Support RAID0/ 1/ 5/ 10）

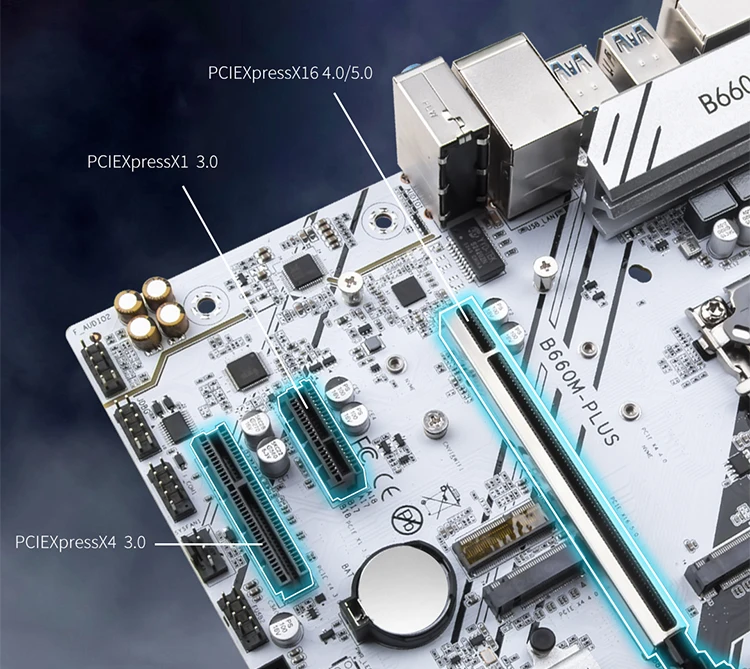

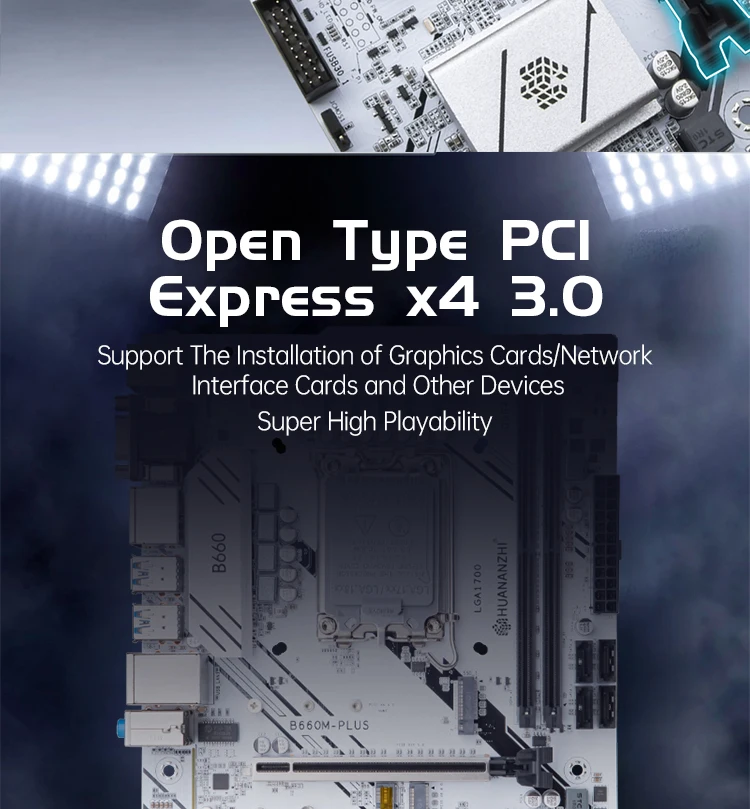

Expansion Slots：1 x PCI Expressx164.0@5.0，1 xPCI Expressx13.0，1 xPCI Expressx4 3.0

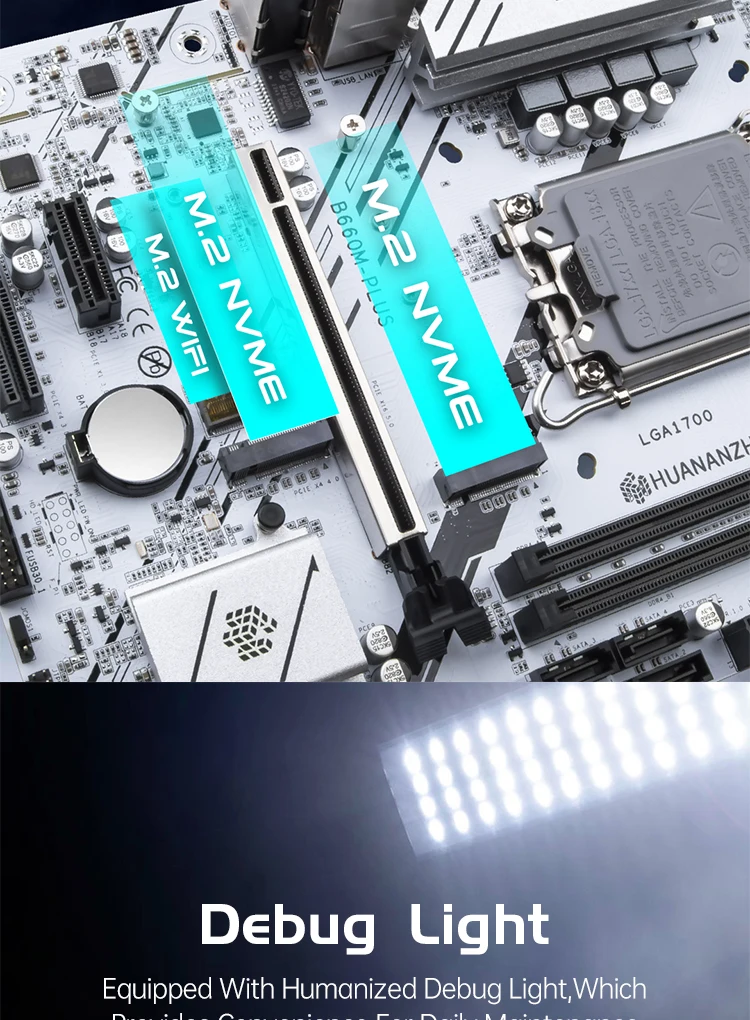

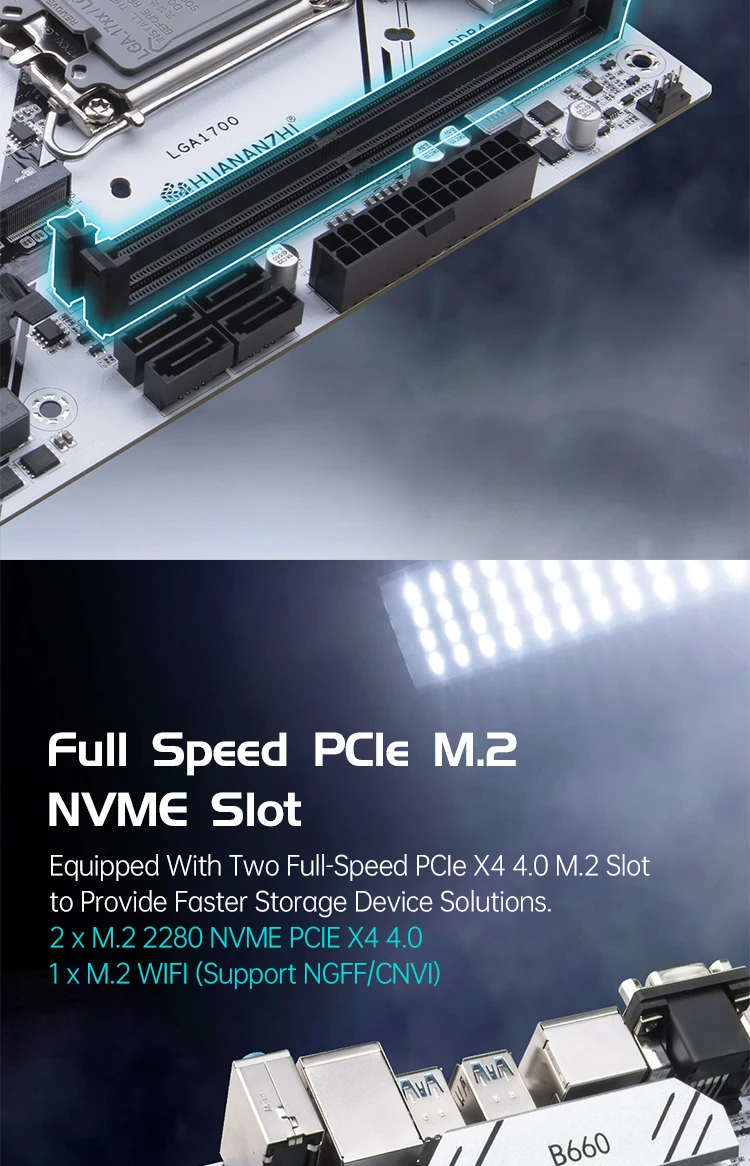

Expansion interface：2 x M.2 2280 NVME PCIE X44.0，1 x M.2 WIFI (Support NGFF/CNVI)
Soud Track：Realtek High Fidelity Audio
Network Card：Realtek RTL8125BG 2.5Gbps LAN
Power interface：24PIN+8PIN
FAN PIN：1xCPU_FAN PIN，2xSYS_FAN PIN
power supply：10-phase power supply
PCB layers：6-layer PCB
Dimension：240*180MM M-ATX

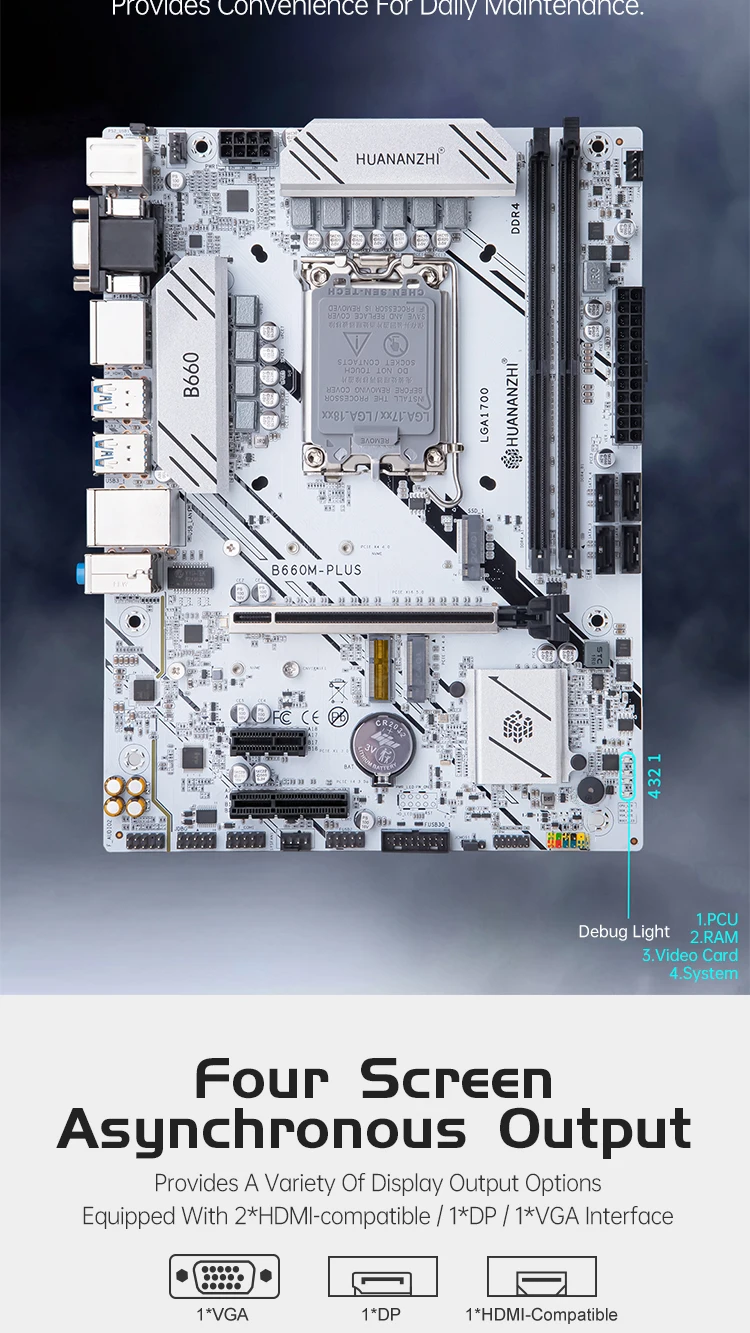

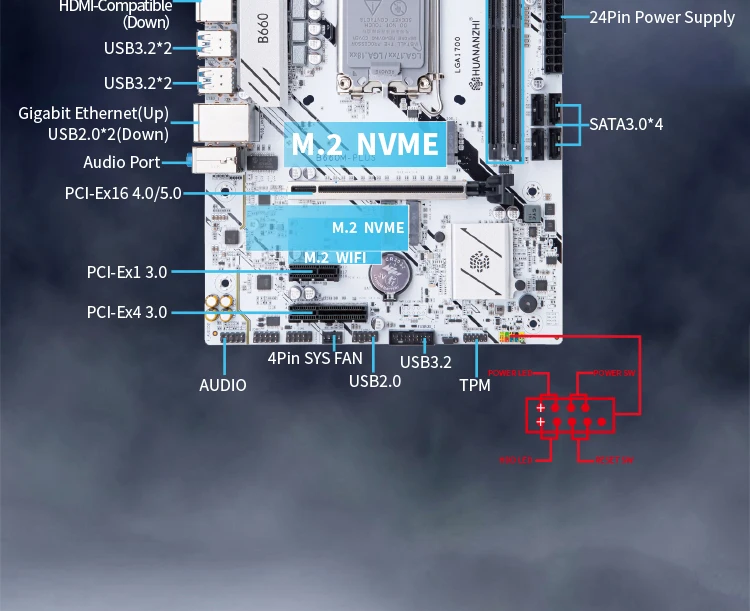

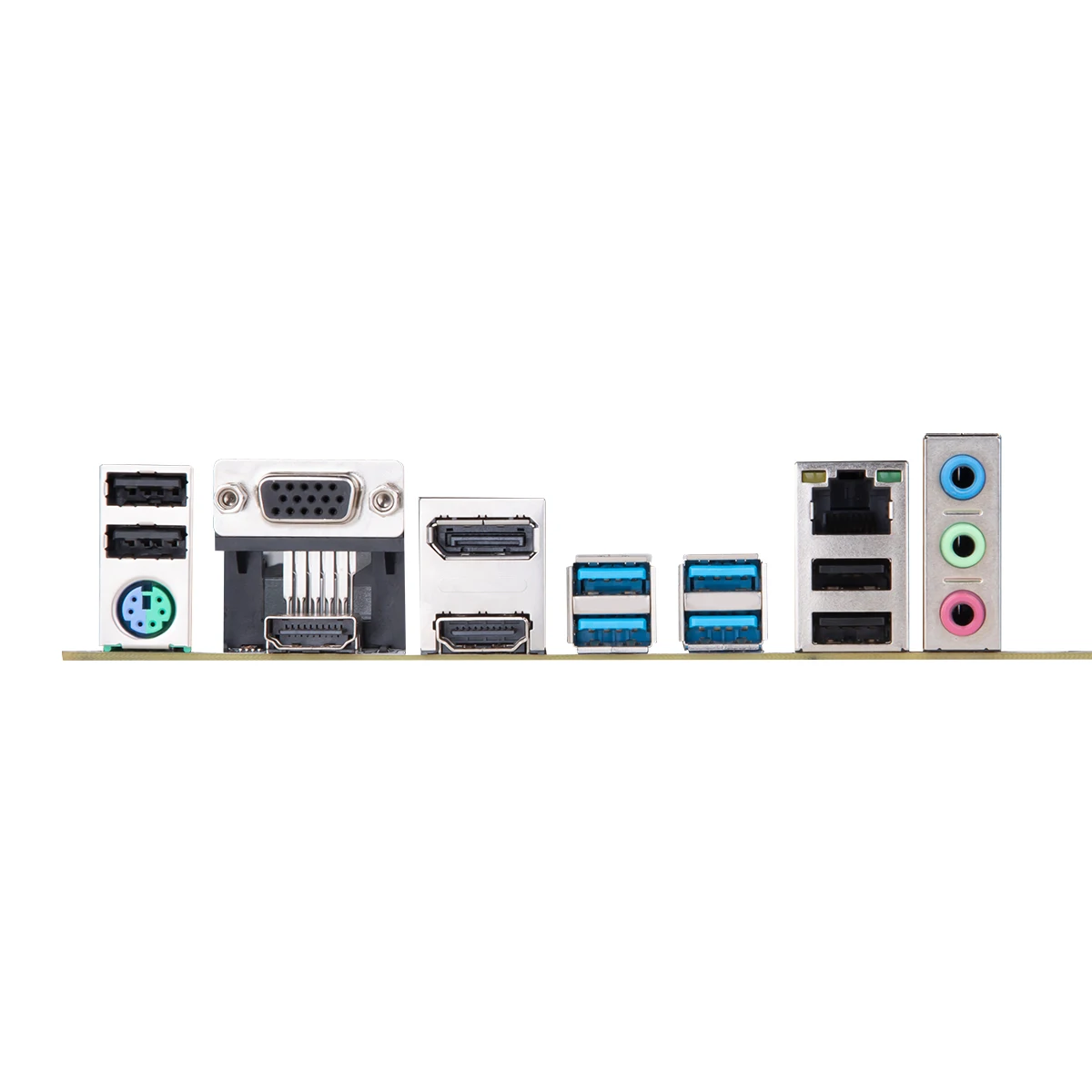

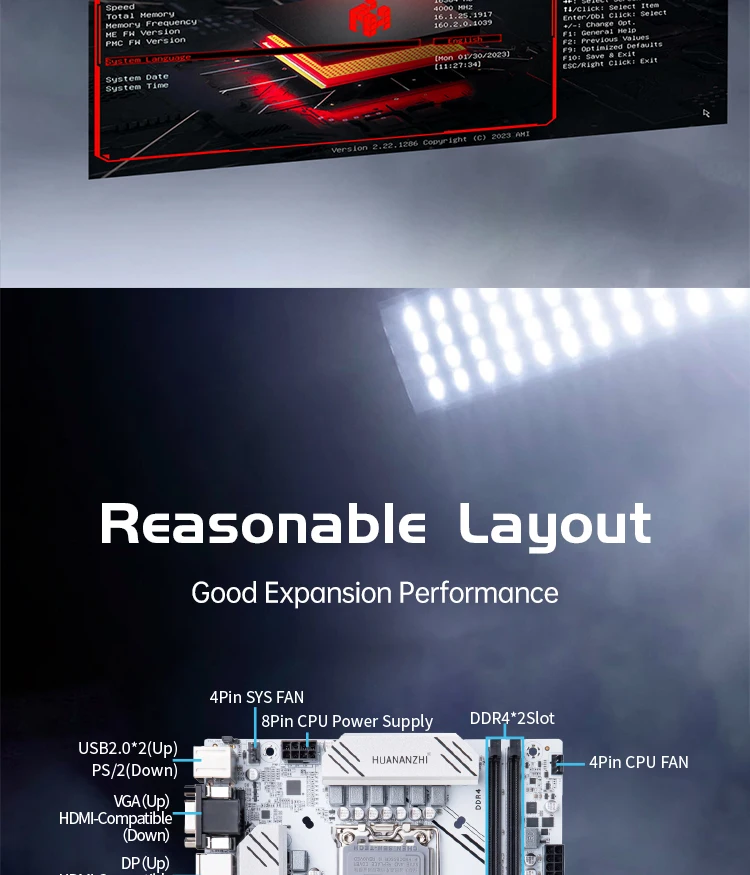

Rear panel interface：1xPS/2 Mouse and Keyboard port，4xUSB2.0，4xUSB3.2，1xRJ45Network card interface，1×3-hole audio interface，1x VGA，2x HDMI2.0，1xDP1.4（Support processor core display four-screen output）
Front panel interface：1 x USB2.0 PIN，1 x USB3.2 PIN，1 xFront audioPIN，1xCOM PIN，1 x Debug indicator，1 xPower on/restart PIN，1xMotherboard buzzer，1 xTPM2.0
Support system：Windows10 Windows11

Note: 1.The motherboard does not have integrated graphics, the cpu needs to support Core Graphics card, and the video output interface can be used.

2.Without cooler Holder Base

Note:

1.Please allow 1-3mm differs due to manual measurement.
2.Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
3.The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.
4.For Customs duties problem , pls make sure you can solve the customs clearance problems by yourself, if you can’t solve it, we don’t advise you to buy goods in our store. We are not responsible for customs duties. Thanks for your kindly understanding！
5.Due to computer accessories is toomuch,are likely to have some small brand,bad quality or ES/QS version of the CPU, RAM, M. 2 SSD or other accessories may occur incompatible situation with motherboard.You can confirm with our customer service before purchase. if there is no confirmation before purchase then incompatible happen when you receive the motherboard, we would not accept a refund, when you buy this link of single motherboard we default you have read and know the situation.Mind please don’t buy!
